Advantages: High combustion efficiency, emission targets reach to achieve national environmental standards; Fully automatic temperature control, high precision temperature control; Can keep the record of temperature, pressure and alarm for above one month. High safety factor, with a variety of fault alarm records; A small number of Nozzles, low maintenance costs. Summary: environmental protection and energy saving, high degree of automation, high efficiency, safe and reliable. Our Company...

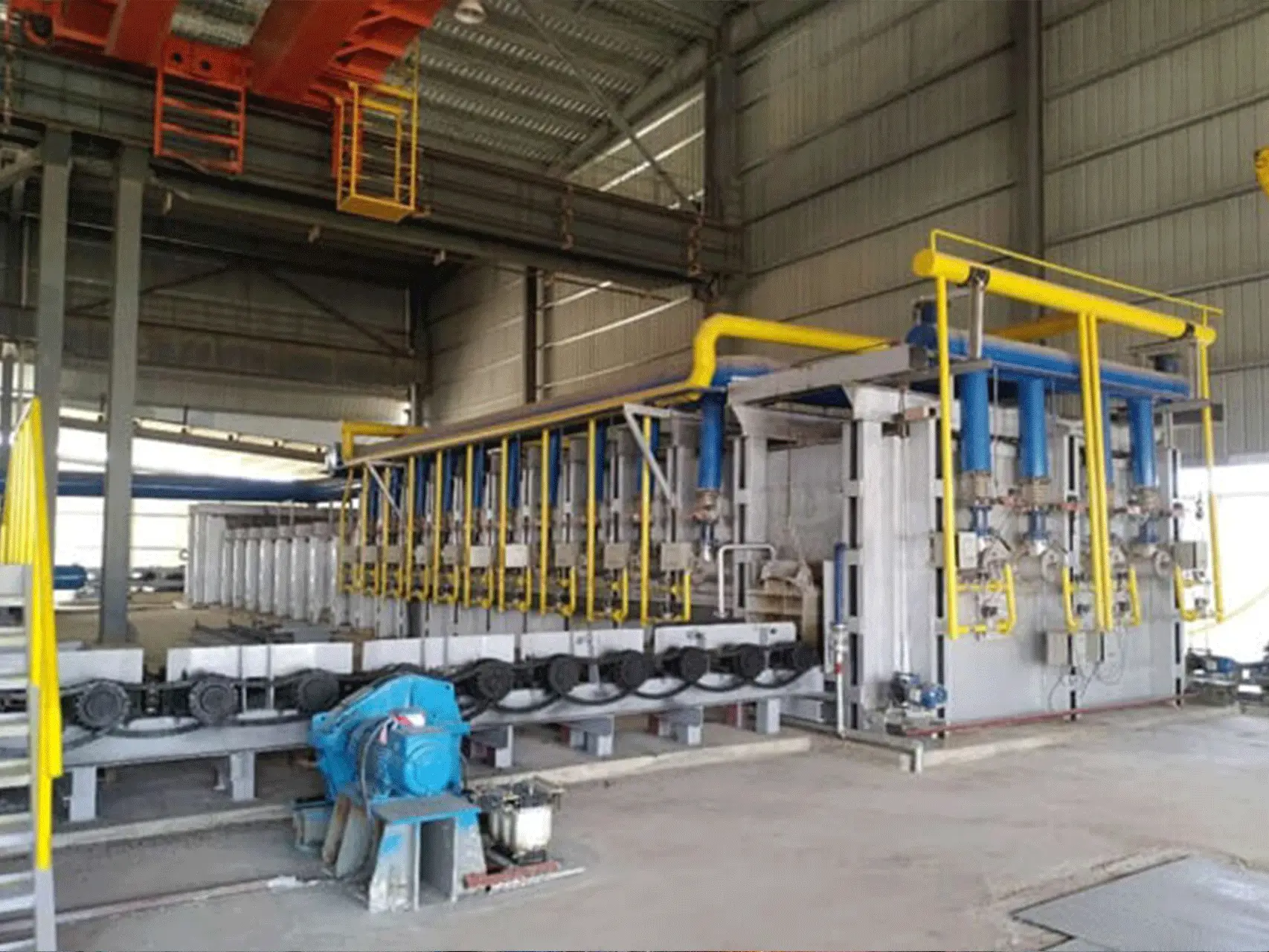

* Walking Beam Type Slab Heater Technical Data Main Technical Parameters No. Name Technical parameters 1 Description Walking beam type copper/brass slab heater 2 Material Copper ,brass,cupro-nickel alloy etc 3 Slab size Thickness 160mm160mm Width 400~420mm400~420mm Length 3000~4600mm3000~4600mm Standard Max. weight: 2.75t/piece/(160×420×4600mm) 2.75t/(160×420×4600mm) 4 Heating capacity Minium 12t/h, 4slab/h(1slab:160×420×4600mm) :12t/h 4/h(160×420×4600mm) 5 Heating temperature...
1. furnace duty: it is supplied for heating copper inget/slab. 2. Technical parameters and mechanical components 2.1 Main Technical Parameters No. Name Technical parameters 1 Description Walking beam type copper/brass slab heater 2 Material Copper ,brass,cupro-nickel alloy etc 3 Slab size Thickness 160mm160mm Width 400~420mm400~420mm Length 3000~4600mm3000~4600mm Standard Max. weight: 2.75t/piece/(160×420×4600mm) 2.75t/(160×420×4600mm) 4 Heating capacity Minium 12t/h, 4slab/h(1s...
1) Furnace Lining Feature In order to quickly heat up the furnace, save energy consumption, and control sensitively, roof, side and back wall lining adopts full fiber structure.To increase the strength of the furnace frame, in the furnace bottom and bogie parts bonded brick building with fire-resistant fibers. The structure has the following characteristics: A. Light weight, less heat storage B. Good insulation, furnace wall is low-temperature (the side surface of furnace temperature rise o...
Environmental Protection and Technology Co., Ltd. is located in the beautiful scenery of Xuzhou city. Jiangsu province high and new technology industrial development zone, the factory covers an area of more than 70000 square meters, building area of more than 50000 square melers, fixed assets 100 million yuan, with management, professional and lechnical and construction welding quality staff more than 400 people. Our factory has strong technical innovation ability and has more than 10 palents of utility model and invention technology etc.
