Walking furnaces, also known as walking beam furnaces, are advanced continuous reheating systems designed to preheat materials, primarily steel billets, blooms, slabs, or bars, for hot rolling, forging, or extrusion, utilizing a unique walking beam mechanism to transport materials through thermal zones. This mechanism ensures precise positioning and uniform heating, making these furnaces vital for industries such as steel production, automotive, and heavy manufacturing. Jiangsu Yinuo Thermal Energy Technology Co., Ltd., based in Xuzhou, China, stands as a global leader in manufacturing sophisticated walking furnace solutions. This guide explores the walking furnace mechanism, its applications, and benefits, detailing its role in modern industrial processing with a focus on precision, efficiency, and sustainability.

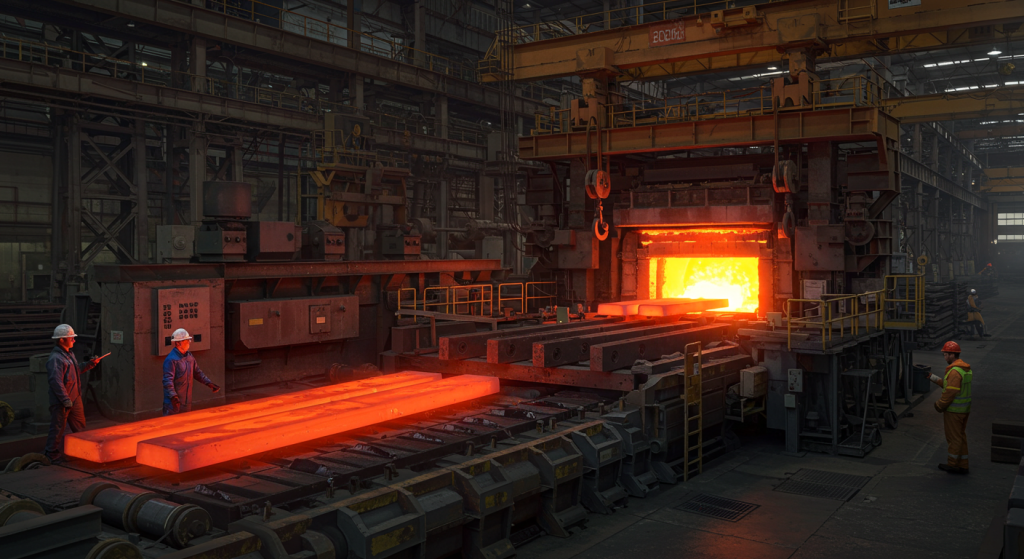

Understanding Walking Furnace Technology
Walking furnaces operate by heating materials to temperatures typically between 1100°C and 1250°C, preparing them for deformation processes like rolling or forging. The walking beam mechanism, a defining feature, uses fixed and movable beams to lift, advance, and lower workpieces, ensuring smooth, controlled movement without surface damage. Integrated with advanced heating systems, automation, and atmosphere control, these furnaces deliver uniform temperature distribution and high throughput, ideal for processing heavy or large loads in continuous production environments.
Core Components
The furnace structure includes a heating chamber lined with refractory materials, such as high-alumina bricks or ceramic fiber insulation, to withstand temperatures up to 1300°C. Gas-fired regenerative burners or radiant tube burners provide efficient heat, with electric heating elements as cleaner alternatives for specific applications. The walking beam mechanism consists of fixed beams, anchored to the furnace floor, and movable beams, driven by hydraulic or electromechanical actuators, supported by water-cooled or refractory-coated skids. Temperature control systems, utilizing PID controllers or PLC-based automation, regulate multi-zone heating. Atmosphere control systems, employing nitrogen or hydrogen blends, prevent oxidation, while entry and exit skids facilitate material handling.
Operational Mechanism
Materials are loaded onto entry skids outside the furnace. The walking beam mechanism initiates a cyclic motion: movable beams lift the material off fixed beams, advance it forward (typically 0.5–2 meters per cycle), and lower it back onto the fixed beams, progressing through preheating, heating, and soaking zones. The preheating zone gradually raises temperatures to 600–800°C, minimizing thermal shock. The heating zone elevates materials to 1100–1250°C, ensuring ductility for processing. The soaking zone maintains uniform heat penetration, critical for thick slabs or blooms. The material exits via discharge skids for downstream operations like rolling. Automated controls ensure precise beam movement, temperature profiles, and atmosphere conditions, optimizing efficiency and quality.
Key Applications of Walking Furnaces
Walking furnaces serve a diverse range of industries, enabling precise reheating for materials requiring specific mechanical properties. Their ability to handle heavy, large-scale workpieces makes them ideal for continuous, high-volume production environments.
Steel Production for Infrastructure
In steel production, walking furnaces preheat billets or slabs for hot rolling into rebar, structural beams, or plates used in infrastructure projects like bridges, highways, and buildings. The walking beam mechanism ensures uniform heating, enhancing microstructure consistency for strength and ductility, supporting high-volume rolling mills with minimal defects.
Automotive Component Manufacturing
Automotive applications involve preheating steel or aluminum slabs for rolling into sheets or forging components like chassis parts, axles, or engine components. The mechanism’s gentle handling prevents surface damage, ensuring high-quality sheets for vehicle body panels. Multi-zone heating supports processing high-strength steels, aligning with the automotive industry’s demand for lightweight, durable materials.
Heavy Industry and Marine Applications
Heavy industry relies on walking furnaces to preheat thick slabs for rolling into plates for ships, pipelines, and industrial machinery. The mechanism’s capacity to handle loads up to 300 tons ensures robust processing, while protective atmospheres maintain surface quality for corrosion-resistant plates, critical for marine environments.
Non-Ferrous and Specialty Material Processing
For non-ferrous applications, walking furnaces heat aluminum, copper, or titanium alloys for rolling or forging in aerospace or electronics industries. The mechanism’s precise movement minimizes distortion, while controlled atmospheres prevent oxidation, ensuring high-performance materials for specialized components like aircraft frames or conductive wiring.
Benefits of Walking Furnaces
Walking furnaces offer distinct advantages, addressing the needs of industries prioritizing material quality, operational efficiency, and environmental responsibility. Their advanced design delivers performance tailored to demanding processing applications.
Precise Material Handling
The walking beam mechanism lifts and advances materials without sliding, preventing surface scratches or damage, as noted in industry practices. This ensures high-quality surfaces, critical for automotive sheets or specialty alloys, and supports processing of heavy or long workpieces (up to 12 meters) with minimal deformation risk.
Uniform Temperature Distribution
Multi-zone temperature control, combined with regenerative burners, achieves uniform heating across large loads, eliminating hot spots and thermal gradients. Atmosphere management systems maintain protective gases, reducing scaling, which enhances the mechanical properties of processed materials.
High Production Capacity
Continuous operation supports high-throughput production, with furnaces capable of processing up to 500 tons per hour, depending on configuration. The mechanism’s cyclic motion optimizes material flow, reducing cycle times compared to batch systems, ideal for large-scale industrial mills.
Energy Efficiency
Regenerative burners recover up to 85–90% of waste heat, reducing fuel consumption by 30–50%. Ceramic fiber insulation minimizes heat loss, lowering energy costs. These features reduce carbon emissions, aligning with environmental sustainability goals, as emphasized in modern furnace designs.
Comparison Table: Walking Furnaces vs. Other Furnace Types
| Feature | Walking Furnace | Pusher Furnace | Roller Hearth Furnace | Batch Furnace |
|---|---|---|---|---|
| Operation Type | Continuous, precise for heavy loads. | Continuous, suited for billets/slabs. | Continuous, flexible for sheets/bars. | Batch, low-volume, flexible processes. |
| Temperature Range | 1100–1250°C, ideal for steel reheating. | 1100–1250°C, similar applications. | 1100–1250°C, versatile for steel/alloys. | 500–1200°C, varies by process. |
| Energy Efficiency | High (regenerative burners, 30–50% savings). | Moderate (some regenerative options). | High (regenerative burners, efficient). | Lower (no continuous heat recovery). |
| Material Handling | Walking beam, heavy load precision. | Pusher, limited to specific loads. | Roller hearth, smooth for sheets. | Manual/static, small batches. |
| Atmosphere Control | Nitrogen/hydrogen, prevents scaling. | Limited, some oxidation risk. | Nitrogen/hydrogen, high control. | Varies, often less controlled. |
| Applications | Rebar, plates, automotive sheets, aerospace alloys. | Billets for rolling/forging. | Steel sheets, bars, glass processing. | Small parts, specialty heat treatment. |
| Production Scale | Large-scale, high-volume mills. | Medium to large-scale. | Medium to large-scale, flexible. | Small-scale, custom production. |
| Maintenance | Moderate, beam maintenance needed. | Higher, pusher wear issues. | Moderate, roller maintenance. | Lower, simpler design. |
| Cost Efficiency | High, due to energy savings and throughput. | Moderate, higher fuel costs. | High, efficient for continuous use. | Lower, but limited throughput. |
Technical Advantages of Walking Furnace Mechanism
Walking furnaces incorporate advanced features that optimize performance, material quality, and operational reliability, addressing the challenges of industrial reheating.
Durable Beam System
The walking beam system uses heat-resistant alloy beams, often water-cooled or refractory-coated, to withstand temperatures up to 1300°C and support loads exceeding 300 tons. Hydraulic or electromechanical actuators ensure precise, synchronized movement, with adjustable beam strokes (e.g., 200–500 mm) for different material sizes, enhancing flexibility and durability.
Efficient Heating Systems
Regenerative burners cycle between firing and exhaust, preheating combustion air to 1000–1200°C, reducing fuel use by up to 50%. Low-NOx designs minimize emissions, complying with regulations. Radiant tube burners provide indirect heating for sensitive materials, ensuring clean surfaces, critical for high-quality processing.
Advanced Automation
PLC-based control systems with IoT integration enable real-time monitoring of temperature, beam movement, and atmosphere conditions. Automated material tracking and cycle optimization reduce human intervention, while predictive maintenance algorithms minimize downtime, ensuring reliable operation.
Atmosphere Control
Protective atmospheres, such as nitrogen-hydrogen blends, prevent oxidation and scaling, critical for stainless or alloy steels. Gas-tight casings and automated atmosphere monitoring maintain precise gas compositions, ensuring consistent surface quality, as required in automotive and aerospace applications.
Industry-Specific Considerations
Different industries require tailored walking furnace configurations to meet specific process and material demands, ensuring optimal performance and cost efficiency.
Steel and Infrastructure
Infrastructure applications prioritize high-capacity furnaces for large slabs or billets, requiring temperatures up to 1250°C for rolling rebar or beams. Gas-fired regenerative burners reduce costs, while heavy-duty walking beams handle loads up to 300 tons, supporting construction projects.
Automotive and Lightweight Materials
Automotive applications demand precision for rolling high-strength steel or aluminum sheets. Furnaces with tight temperature tolerances (±5°C) and nitrogen atmospheres ensure surface quality. Rapid beam cycles support high-volume production, critical for lightweight vehicle components.
Heavy Industry and Marine Applications
Heavy industry requires furnaces for thick slabs, rolled into plates for ships or pipelines. Walking beam systems with robust actuators manage heavy loads, while protective atmospheres maintain corrosion-resistant surfaces, essential for marine environments.
Aerospace and Non-Ferrous Processing
Aerospace applications involve reheating aluminum or titanium alloys for precision rolling or forging. Hydrogen atmospheres and precise thermal cycles prevent oxidation, while gentle beam handling minimizes distortion, meeting standards like AMS 2750 for critical components.
Challenges and Solutions
Walking furnaces face challenges like energy consumption, surface quality control, and mechanical wear, but advanced engineering addresses these issues effectively.
Energy Consumption
High-temperature reheating consumes significant energy. Regenerative burners and ceramic fiber insulation reduce losses by up to 50%, while electric heating options enhance efficiency for smaller furnaces, as noted in industry practices.
Surface Quality Control
Scaling or surface damage can occur during reheating. Protective atmospheres and radiant tube heating ensure clean surfaces, while the walking beam’s non-sliding motion prevents scratches, critical for high-quality products.
Mechanical Wear and Maintenance
Heavy loads and high temperatures stress beam components. Water-cooled or refractory-coated beams extend lifespan, while IoT-enabled diagnostics and spare parts bundling reduce downtime, ensuring continuous operation.
Future Trends in Walking Furnaces
The walking furnace industry is evolving, driven by advancements in automation, sustainability, and material processing, shaping the future of industrial reheating.
Automation and Digitalization
AI-driven controls and IoT integration enable real-time optimization, predictive maintenance, and material tracking. Automated systems reduce labor costs and enhance precision, supporting complex processes for advanced materials.
Sustainability Initiatives
Electric furnaces and renewable energy integration lower carbon emissions, aligning with environmental regulations. Ultra-low NOx regenerative burners and advanced insulation further reduce environmental impact, supporting sustainable manufacturing.
Advanced Material Processing
Demand for furnaces supporting high-strength steels, aluminum, and titanium alloys is rising. Walking furnaces are adapting to process materials like 22MnB5 steel for hot forming, requiring precise thermal cycles, supporting innovation in automotive and aerospace.
Choosing a Walking Furnace
Selecting a walking furnace requires evaluating process, material, and production needs to ensure optimal performance and cost efficiency.
Key Considerations
Material type, such as steel or aluminum, determines furnace configuration and atmosphere requirements. Process needs—hot rolling, forging, or extrusion—dictate temperature range and beam capacity. Production scale influences furnace size, with high-throughput mills needing wider designs. Energy efficiency, driven by regenerative burners, impacts costs. Automation and maintenance support ensure reliability.
Partnering with Jiangsu Yinuo
Jiangsu Yinuo’s team provides expert guidance, designing custom furnaces tailored to industrial goals. Installation and ongoing support ensure seamless performance, delivering precision and efficiency. Clients can explore solutions and connect through the Jiangsu Yinuo website for tailored furnace options, backed by global expertise.
FAQ
What is the purpose of a walking furnace?
Walking furnaces preheat steel or alloys for hot rolling, forging, or extrusion, ensuring precise movement and uniform heating for industrial applications.
What materials can walking furnaces process?
Carbon steel, alloy steel, stainless steel, aluminum, and titanium alloys are processed, supporting construction, automotive, and aerospace industries.
How is furnace quality ensured?
Production involves rigorous testing of components, using premium refractories, with compliance documentation meeting ISO and CE standards.
Are walking furnaces customizable?
Furnaces are tailored to specific material, process, and production needs, with support from design to installation.
How energy-efficient are walking furnaces?
Regenerative burners and insulation reduce fuel use by up to 50%, lowering costs and emissions.
How can a quote be requested from Jiangsu Yinuo?
A contact form, email, or phone inquiry through the Jiangsu Yinuo website provides a prompt response.
Conclusion
Walking furnaces deliver precision, efficiency, and sustainability, driving high-quality production in steel, automotive, and heavy industry. Jiangsu Yinuo Thermal Energy Technology Co., Ltd. offers innovative, customized solutions that empower manufacturers globally. With advanced technology and a focus on performance, these furnaces meet the demands of modern material processing. Explore solutions and connect through the website for a tailored quote to enhance production capabilities today.
